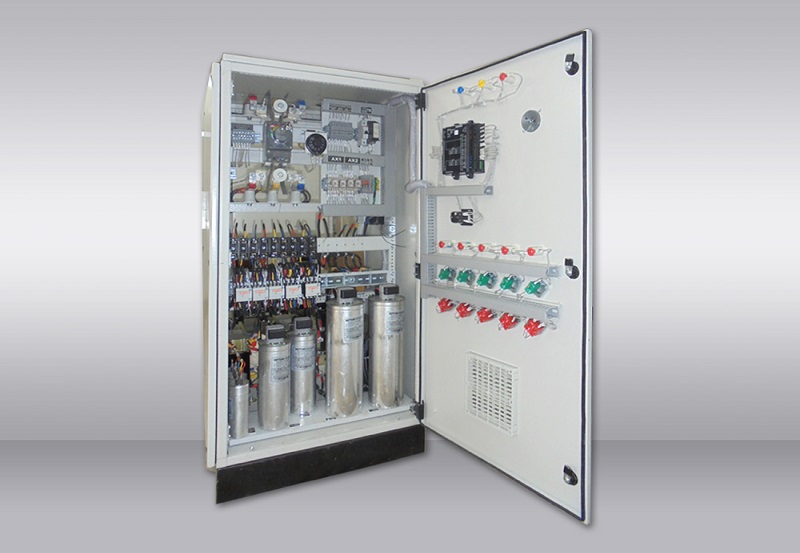

APFC Panel Manufacturers in India, Suppliers in India
HRS Engineering And Power Solutions Pvt. Ltd.is leading APFC Panel Manufacturers in India, Suppliers and Exporters in India. Our area of focus is the design and production of high performance APFC Panels which maximize power factor, minimise energy loss and maximise electrical performance on industrial and commercial systems.
Our panel system is designed to be very accurate in quality, durable, and does not require a lot of adjustment to integrate into your existing systems. We design solutions with advanced technology and trusted components that enhance energy, reduce electricity bills, and provide stable and reliable performance of power.
About APFC Panel
APFC Panel (Automatic Power Factor Correction Panel) is an electrical panel that maintains the power factor of a system to an optimum value though automatic means. It can be used to minimize energy loss, reduce reactive power and enhance the efficiency of electrical networks. These panels also stabilize voltage, safeguard equipment and reduce electricity expenses within industrial and commercial installations.
Types of APFC Panel
As APFC Panel Manufacturers in India, we provide various types of Automatic Power Factor Capacitor Panels for efficient power factor correction.
- By Switching Mechanism (Technology)
- Contactor-Based APFC Panels: : The electromechanical contactors in these panels are used to close or open the capacitor banks. They suit best with systems that have constant loads and offer an economical energy saving option.
- Thyristor-Based APFC Panels: : These panels come with solid-state thyristors to allow capacitor banks to be switched rapidly and without transient currents to eliminate inrush currents. They suit very well in situations where the loads tend to be dynamic and change very fast.
- Hybrid APFC Panels: : Hybrid panels combine the contactors and thyristors so that they provide a balance between price and switching speed, and are therefore appropriate in diverse industrial uses.
- Static VAR Generator (SVG) Panels: : The SVG panels use advanced power electronics to offer near-instantaneous reactive power compensation, which is important in achieving precise and real-time power factor correction to even complex electrical systems.
- By Application & Load Type
- Reactor-Based (Detuned) APFC Panels: : These panels incorporate series reactors (e.g., 7%, 14%) to control the harmonic distortion, so they are perfect with non-linear loads of industry such as welding machines, variable frequency drives, and heavy motors.
- RTPFC (Real-Time Power Factor Correction) Panels: : The RTPFC panels are designed to operate in the environment with the highly changing power requirements and optimize the power factor in real time.
- Single Phase APFC Panels: : The panels are efficient and compact, fit into residential or small commercial systems and enhance power factor and minimizes electricity bills of systems with small loads.
- Three Phase APFC Panels: : These panels are used in industrial and large commercial applications and are designed to support heavy and unbalanced loads in order to provide stable power, lower losses and equipment protection.
Technical Specifications of APFC Panel
As APFC Panel in India, our panels are available with following technical specifications.
| Specification | Details |
|---|---|
| System Voltage | 415V AC, 3-phase, 3/4 wire (LT) or up to 33kV (HT) |
| Frequency | 50/60 Hz |
| Capacity Range | 40 KVAR to 200+ KVAR (customizable) |
| Control Supply | 220V AC / 415V AC |
| Current Input | 5A standard (0.15A – 6.5A operating range) |
| Controller | Microprocessor-based APFC relay (6–14+ stages) |
| Capacitors | Heavy-duty cylindrical or box-type |
| Switching Devices | Contactors or solid-state thyristors |
| Protection | MCCB/Fuses for incomer, HRC fuses for capacitor banks |
| Harmonic Filtration | 5.67% or 7% detuned reactors |
| Busbars | EC grade Aluminium/Copper, color-coded |
| Enclosure | CRCA sheet steel, floor-mounted / free-standing |
| Protection Class | IP42 standard, up to IP65 for outdoor |
| Ventilation | Axial fans with thermostats |
| Monitoring | Digital meters for Voltage, Current, PF, THD, kVAh, kVArh |
| Safety Features | Discharge resistors (<50V in 5 mins), interlocks |
| Operating Modes | Automatic, Manual, Auto-Rotate |
| Step Sensitivity | C/K setting 0.03 – 1.20 with step reconnection timers |
Benefits of APFC Panel
As APFC Panel Suppliers in India, we deliver reliable, energy-saving, and performance-driven solutions for industrial power management.
- Cost Efficiency : Avoids utility charges on low power factor and greatly reduces power bills every month.
- Stable & Reliable Power : It limits the voltage drops and fluctuations to a minimum, thus ensuring the consistent operation of all the electric systems.
- Equipment Protection : It is a safe measure for the equipment as it simply avoids overheating, voltage sags, and premature failure of motors, transformers, and sensitive electronics.
- Optimized System Capacity : Frees transformer and cable loading capacity, whereby additional equipment can be added without the need to upgrade the equipment at an expensive cost.
- Energy Optimization & Low Maintenance : Ensures close unity power factor to efficiently utilize energy and as well as reduce system breakdowns and downtime.
Applications of APFC Panel
As APFC Panel Exporters in India, our panels are widely used in manufacturing industries, commercial buildings, and power plants.
- Industrial Plants : Widely applied in cement, automobile, textile, chemical and pharmaceutical industries to control inductive loads.
- Electrical Machinery : Ideal when power must be reactive, i.e. with motors, compressors, pumps, fans, and blowers that often develop reactive power problems.
- Commercial and Institutional Buildings : Increases the efficiency of IT parks, hospitals, malls and banks in terms of power.
- Power Distribution Systems : Critical to sub-stations, wind energy installations and railroads electrification in order to stabilize the network.
- Renewable Energy Installations : Manage controls that cause and lagging powers in solar PV and hybrid energy system to achieve optimal performance.
Why Choose Us?
- Expertise & Innovation : We offer the high-tech panels, which are designed with accuracy and reduce the usage of costly items to ensure stable and economic power regulation.
- Customized Solutions : Our panels are designed to suit your load needs with maximum saving of energy, constant power and integration to existing systems.
- Quality & Support : We focus on safety, performance, and long-term reliability, which are supported with uninterrupted operations of service and technical support.
HRS Engineering And Power Solutions Pvt. Ltd.is well-known APFC Panel Manufacturers in India, Suppliers and Exporters in India. Our panels are of high quality and they are constructed to maximize the power factor, improve the energy efficiency and safeguard your electrical systems. With the integration of superior technology, robust and flexible solutions, we guarantee stable, reliable and affordable power management.
Our excellence and strong commitment to support is what makes us the reliable to industries, commercial setups, and renewable energy installations. Connect with us to know more.
FAQ's
It saves electrical charges through prevention of low power factor charges, equipment protection, stabilization of voltage and additional loads to the transformer.
The panel keeps an eye on power factor of the system and automatically turns capacitor banks ON/OFF to keep the power factor close to unity.
Yes, these panels stabilize voltage, lower reactive power, avoiding overheating and stress of motors and transformers, and other fragile or sensitive equipment.
