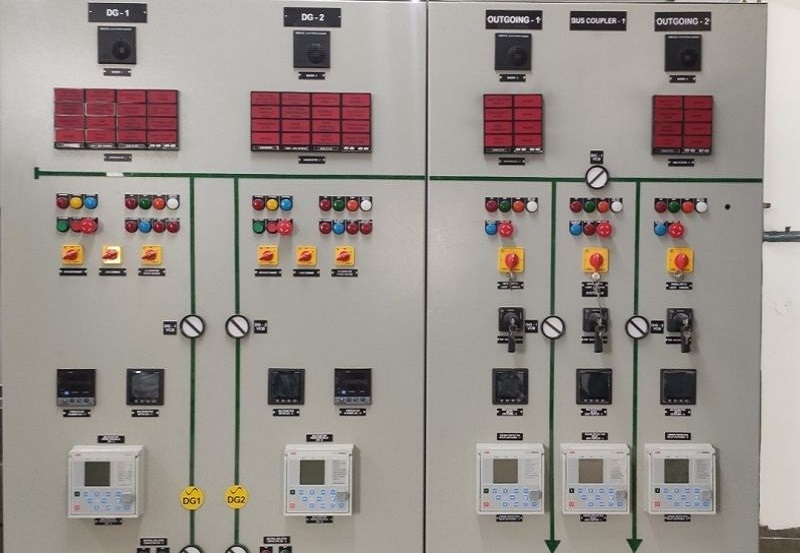

Control Relay Panel Manufacturers in India, Suppliers in India
HRS Engineering And Power Solutions Pvt. Ltd.is leading Control Relay Panel Manufacturers in India, Suppliers and Exporters in India. We promise to provide high quality, reliable and precision engineered solutions. Our panels are designed to guarantee easy control, better safety, and extreme efficiency to various industrial applications.
We enable businesses to perform to the fullest through our superior technology, high quality control relay panels, and tailored solutions. We are concerned with innovation, reliability, and customer satisfaction on all steps.
About Control Relay Panel
It is critical electrical equipment that controls and automates the use of machinery and equipment. Control Relay Panel provides accurate control, protection and coordination of the electrical circuits in an industrial system. It is created to be reliable and efficient and allows industries to operate smoothly and reduces downtime and electrical risks.
Types of Control Relay Panel
As Control Relay Panel Manufacturers in India, we provide customized relay panels designed for industrial automation and electrical systems.
- By Function
- Transformer Protection Panel:
Intended to protect power transformers, the panel checks and safeguards against faults including overfluxing, short circuiting, and internal damages so that the transformer functions do not go dead. - Line Protection Panel:
It is designed specifically to protect feeder lines against overcurrent and short circuits and faults based on distance to ensure the stability of the distribution network. - Differential Protection Panel:
Detection of faults within a specific area i.e. busbar or large transformer, which offers accurate and prompt fault detection to avoid damage to equipment. - Metering & Protection Panel:
Combines monitoring instruments, transducers and protection relays into a small system making it possible to manage substations and have accurate metering and protection. - Bus PT Panel:
It is used to control the potential transformer (voltage) of the bus system (and to make sure that the voltage was adequate and the electrical network operated safely). - Synchronizing Panel:
Enables coordination between generators or power lines prior to connecting breakers together so as to provide a continuous and consistent power supply with no interruptions. - By Technology
- Electromechanical Relay Panel:
It employs conventional mechanical levers and contacts in switching functions. These panels were known to be simple and reliable and even today they are still used in some industrial applications. - Solid-State Relay Panel:
Instead of using moving parts, employs semiconductor devices, which provides more reliable, faster and durable switching, and require little maintenance. - Numerical / Microprocessor-Based Panel:
Modern and advanced panels with their flexible protection settings, real-time communication and detailed data logging, which is perfect in smarter substations and automated industrial systems.
Technical Specifications of Control Relay Panel
As Control Relay Panel in India, we have added here a sheet of technical details for Control Electrical Relay Panel.
| Specification | Details |
|---|---|
| Dimensions & Construction | Height: ~2250 mm (plus base/anti-vibration pad), Width & Depth: 800–1000 mm; Load-bearing members: 3mm cold-rolled steel, Sides/Doors: 2mm steel |
| Environmental Protection | Dust, moisture & vermin-proof; IP-31/55 rated |
| Mounting | Floor-mounted, free-standing with foundation base |
| Relays | Numerical/static for overcurrent, earth fault, differential protection |
| Wiring | Copper for CT/PT/control circuits; standard AC/DC wiring |
| Annunciator | DC-operated fault signaling |
| Terminals | Test terminal blocks with non-flammable covers |
| Operating Voltage | 110/220V DC for control; 230V AC for lighting/heaters |
| Cable Management | Bottom entry, removable gland plates ≥100 mm from ground |
| Safety & Finish | Anti-vibration strips, lockable double doors, powder-coated, internal lighting |
Benefits of Control Relay Panel
As Control Relay Panel Suppliers in India, our panels ensure efficient fault detection and system protection.
- Enhanced Safety
Identifies over current, over voltage or frequency problems and activates the protection to prevent damage to equipment and people. - Reduced Downtime
Well-structured, clear panels make it easy to identify faults and also make it easier to repair. - Reliable Control
Serves as the key point of automated and manual control of switchgear and transformers. - Real-Time Monitoring
Tracks drive parameters and record information to make effective decisions. - Customizable Design
Applicable to different industries and can be set up to different voltages and operational requirements.
Applications of Control Relay Panel
As Control Relay Panel Exporters in India, we provide reliable solutions for effective electrical system monitoring and protection.
- High-Voltage Substations
Guards and regulates transformers, transmission lines, and busbars in 33kV, 132kV, and 220k V substations, and provides consistent power distribution. - Industrial Power Distribution
Regulates the movement of electricity throughout the factories, manufacturing plants, and processing plants to ensure uniform and safe operations. - Renewable Energy Integration
Enables secure interconnection of wind and solar power plants to the grid and does not affect the quality of power and efficient switching. - Infrastructure and Utility Systems
Applied in water treatment plants, metropolitan systems and high commercial buildings to regulate and protect electrical systems. - Critical Facility Management
Guarantees continued functioning of hospitals, data centres, and telecommunication hubs through the protection of equipment and ensuring the consistency of power flow.
Why Choose Us?
- Quality & Reliability
Our control relay panels are designed with high quality materials to guarantee durability in terms of performance and reliable protection. - Tailored Solutions
We produce panels to suit certain voltages, capabilities, and industry applications and provide flexible substation, factory, and renewable energy projects. - Expert Support & Exports
We offer technical support, installation services, and post sales services, and we export panels of global standards.
HRS Engineering And Power Solutions Pvt. Ltd.is prominent Control Relay Panel Manufacturers in India, Suppliers and Exporters in India. Our products are high performance control relay panels with an efficient blend of precision engineering, longevity, and technology. We specialize in tailor made designs to suit the various industrial and utility needs, which are reliable, safe and efficient in power management.
We develop solutions that will optimize system performance, reduce downtimes, and serve domestic, international projects by incorporating innovative elements and strong buildings and support. Connect with us for more information.
FAQ's
A control relay panel is a panel that holds electrical circuits in control and protection, by converting switchgear, transformers, as well as other equipment in a manual and automatic manner.
The control relay helps detect the aberrant situations such as overcurrent, overvoltage or fault and cause protective measures to protect equipment.
They identify the electrical faults in real time and isolate the affected circuits automatically, preventing the damage and risks both to equipment and people.
