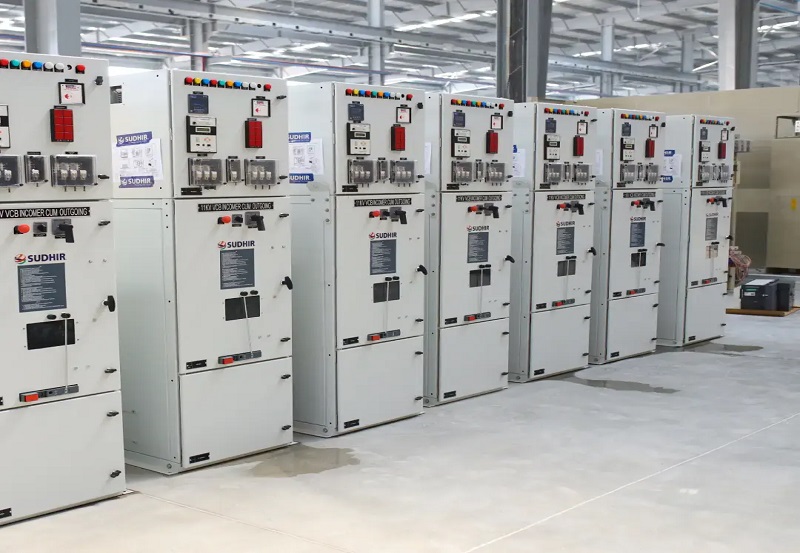

HT Panel Manufacturers in India, Suppliers in India
HRS Engineering And Power Solutions Pvt. Ltd.is trusted HT Panel Manufacturers in India, Suppliers and Exporters in India. We design, produce, and distribute HT Panels of high quality that will provide reliable power distribution and the best electrical performance. Our panels are designed to meet precision, safety as well as durability, and are suited to industrial, commercial, and infrastructure applications.
Our tailored solutions are efficient, take less time and satisfy the world standard, which makes us a reliable supplier of all your high-tension electrical requirements. We have expert team and modern technology that ensures smooth installation and extended performance in international market.
About HT Panel
High Tension Panel is electrical equipment applied in the control, distribution, and protection of high current power in industrial, commercial and infrastructure systems. It guarantees proper and safe power control, reduces the time of downtime, and ensures the stability of the functioning of the electric machines.
Types of HT Panel
As HT Panel Manufacturers in India, we supply custom-built panels engineered for various voltage levels and load demands.
- Vacuum Circuit Breaker (VCB) Panels:
VCB Panels include electrical circuits that are safeguarded by the fault current interruption. They are maintenance-free and dependable and suited to industry. - SF6 Circuit Breaker Panels:
These panels apply SF6 gas in improving insulations and circuit breaking. They suit high voltage outdoor installations, or a small installation. - Ring Main Units (RMUs):
RMU consist of circuit breakers, isolators and switches all combined in one unit. They are ideal in limited urban distribution systems. - Load Break Switch (LBS) Panels:
LBS Panels give the possibility to switch live circuits both manually or with motors in a safe way. They find applications in disconnecting maintenance in the distribution systems. - Metering Panels:
These panels determine the power consumption based on CTs and PTs. Metering Panels aid in the control and surveillance of electrical parameters and saving energy profitably.
Technical Specifications of HT Panel
As HT Panel in India, we have added here a table of technical specifications for high tension panels.
| Specification | Details |
|---|---|
| Voltage Rating | 3.3kV, 6.6kV, 11kV, 22kV, 33kV (up to 36kV) |
| Current Rating | 630A, 800A, 1250A, 1600A, 2000A |
| Short Time Rating | 18.4kA – 31.5kA for 3 seconds |
| Insulation Level | Up to 70kV RMS / 170kV Peak (33kV) |
| Protection Class | IP-54 (Indoor/Outdoor) |
| Structure | Floor-mounted, compartmentalized, 2mm CRCA sheet |
| Operating Mechanism | Manual or motor-operated spring charging (230V AC) |
| Switching Device | VCB or SF6 Circuit Breaker |
| Busbar | Aluminium or Copper, typically 1250A |
| Protection Devices | Numerical relays for overcurrent, earth fault & short circuit |
| Safety Features | Safety shutters, explosion vents, earthing switches |
| Monitoring | Digital/Analog meters for voltage, current & power factor |
| Auxiliary Supply | 24V / 48V / 110V / 220V DC |
| Standards Compliance | IEC 62271-200 / IS:3427, IEC 60529, IS:1248 |
| Dimensions (Single Bay 33kV) | ~1200mm × 2800mm × 2400mm (WxDxH) |
Benefits of HT Panel
As HT Panel Suppliers in India, our panels offer high operational reliability and long service life.
- Enhanced Safety & Protection
With high-technology circuit breakers, HT Panels cushion equipment against overloads, short circuits and electrical faults to secure safe operating environment. - Improved Energy Efficiency
They control high voltages in the distribution, thereby minimizing transmission losses and minimizing costs of operation. - Reliable Power Management
They provide constant and continuous power supply, which is essential in the uninterrupted continuity of industrial and commercial operations. - Durability and Robust Construction
They are manufactured using the best CRCA steel and corrosion resistant materials, which make them endure strenuous industrial environments. - Space Optimization & Flexibility
They are suitable in limited or complicated electrical designs due to their customizable and small size.
Applications of HT Panel
As HT Panel Exporters in India, we provide dependable solutions for safe and efficient electrical power systems.
- Industrial Plants and Factories
Motors, production equipment and high voltage machinery are also controlled by using them to provide safe and efficient industrial operations. - Power Generation and Distribution
They are essential to substations and power plants as well as utility networks, and contribute to the reliability of electricity to end users. - Commercial Infrastructure
They are fitted in commercial high-demand buildings, IT parks and malls, and maximize electrical operations. - Renewable Energy Projects
These panels are necessary to integrate clean energy sources and effective power delivery including solar and wind farms connection to the grid. - Institutional Facilities
They provide continuous power flow and dependability to hospitals, universities and other large institutions to protect delicate operations.
Why Choose Us?
- Quality & Reliability
Our products are high-quality HT Panels constructed using robust materials and technology and can maintain safe and uninterrupted power regulation to all uses. - Global Reach & Export Expertise
Having experience of exporting to foreign market, we supply panels that correspond to world standards and fulfil international safety and performance standards. - Custom Solutions & Support
We provide complete customized HT Panels with professional advice, delivery on time and after sales services to suit the special needs of each customer.
HRS Engineering And Power Solutions Pvt. Ltd.is prominent HT Panel Manufacturers in India, Suppliers and Exporters in India. Our mission is to provide our customers with high quality HT Panels that are of the utmost quality in terms of reliability, efficiency and durability. We offer tailored solutions to industries, business setups, and infrastructure using our knowledge in design, production and exports.
We guarantee efficient installation, stable operation, and quality customer service and we can be a reliable provider of all your high tension electrical requirements. Contact us to have more information.
FAQ's
To keep circuit breakers and relays safe and efficient, these panels are tested through insulation resistance tests, continuity checks, and circuit breakers and relays functional testing.
The principal ones are VCB Panels, SF6 Circuit Breaker Panels, Ring Main Units (RMUs), Load Break Switch Panels and Metering Panels.
Installation entails correct earthing, fixing on a flat surface, the busbar and cable connections and the commissioning of all the protection and control equipment.
